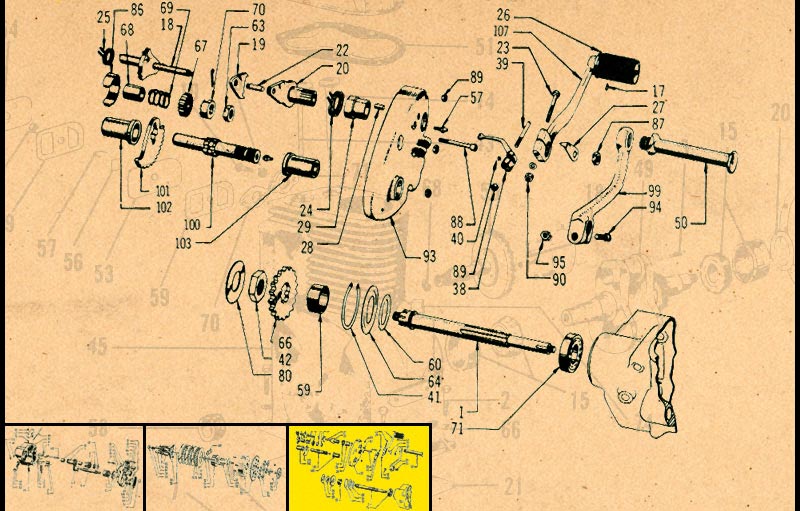

Three Speed Transmission Parts - PAGE 3
| # | PART # | NOMENCLATURE | |
| 1 | M-1503 | Mainshaft | |
| 2 | M-1504 | Gear - Mainshaft Sliding | |
| 3 | M-1505 | Gear - Driving | |
| 4 | M-1506 | Gear - Third Driving | |
| 5 | M-1507 | Gear - Layshaft Second | |
| 6 | M-1508 | Gear - Layshaft Sliding | |
| 7 | M-1509 | Gear - Layshaft Large | |
| 8 | M-1510 | Spindle - Layshaft | |
| 9 | M-1511 | Lever - Bell Crank Inner | |
| 10 | M-1512 | Spindle - Bell Crank | |
| 11 | M-1513 | Pawl - Bell Crank | |
| 12 | M-1514 | Spring - Pawl | |
| 13 | M-1515 | Lever - Inner | |
| 14 | M-1516 | Bolt - Inner Lever | |
| 15 | M-1517 | Cover - Inspection | |
| 16 | M-1519 | Pin - Fixing .250 Dia | |
| 17 | M-1520 | Pin - Fixing | |
| 18 | M-1521 | Ratchet - Foot Change | |
| 19 | M-1522 | Pawl | |
| 20 | M-1523 | Quadrant - Control | |
| 21 | M-1524 | Bushing - Control | |
| 22 | M-1525 | Spindle - Pawl | |
| 23 | M-1526 | Bolt - Control Lever | |
| 24 | M-1527 | Spring - Main | |
| 25 | M-1528 | Spring - Pawl | |
| 26 | M-1529 | Rubber - Control Lever | |
| 27 | M-1531 | Indicator | |
| 28 | M-1532 | Pin - Main Spring | |
| 29 | M-1533 | Bushing - Cover | |
| 30 | M-1524 | Plate - Buffer Cover | |
| 31 | M-1535 | Bolt - Chainwheel | |
| 32 | M-1536 | Nut, .500-26 | |
| 33 | M-1537 | Rubber - Buffer | |
| 34 | M-1538 | Screw - Spring Plate Adjusting | |
| 35 | M-1539 | Nut - Spring Plate Adjusting Screw | |
| 36 | M-1540 | Rollers (17 Per Set) | |
| 37 | M-1541 | Stud - .250-20 x 1.000 | |
| 38 | M-1544 | Lever - Clutch | |
| 39 | M-1545 | Pin - Clutch Lever | |
| 40 | M-1546 | Ball, .250 Dia.) | |
| 41 | M-1548 | Ring - Retaining | |
| 42 | M-1549 | Nut - Driving Gear | |
| 43 | M-1550 | Glut | |
| 44 | M-1551 | Block - Operation | |
| 45 | M-1552 | Washer - Bell Crank Spindle | |
| 46 | M-1553 | Screw - Pawl Bearing | |
| 47 | M-1554 | Nut - Pawl Bearing | |
| 48 | M-1556 | Plug - Pawl Spring | |
| 49 | M-1557 | Ball - Trunnion | |
| 50 | M-1559 | Pedal Kickstarter | |
| 51 | M-1567 | Spring - Kickstarter | |
| 52 | M-1573 | Stud - Inspection Cover | |
| 53 | M-1574 | Cap | |
| 54 | M-1576 | Washer - Mainshaft | |
| 55 | M-1577 | Washer - Inner Lever Bolt | |
| 56 | M-1578 | Rod - Clutch (10.875 long) | |
| 57 | M-1579 | Nipple | |
| 58 | M-1580 | Washer - Retaining | |
| 59 | M-1581 | Distance Piece | |
| 60 | M-1582 | Washer - Mainshaft Bearing | |
| 61 | M-1583 | Bushing - Layshaft (Kickstarter Case) | |
| 62 | M-1585 | Bushing - Driving Gear | |
| 63 | M-1586 | Nut - Mainshaft .437-26 | |
| 64 | M-1587 | Cover - Dust | |
| 65 | M-1588 | Washer - Driving Gear | |
| 66 | M-1589 | Sprocket (18 Teeth) | |
| 67 | M-1590 | Ratchet Pinion | |
| 68 | M-1591 | Bushing - Ratchet Pinion | |
| 69 | M-1592 | Spring - Ratchet Pinion | |
| 70 | M-1592 | Ratchet - Driving | |
| 71 | M-1594 | Bearing - Driving Gear | |
| 72 | M-1595 | Bearing - Mainshaft | |
| 73 | M-1596 | Case - Clutch (3 plate) | |
| 74 | M-1597 | Center - Clutch | |
| 75 | M-1598 | Plate - Clutch (Includes Cork Inserts) | |
| 76 | M-1599 | Insert - Cork (60 Per Set) | |
| 77 | M-1600 | Plate - Steel Clutch | |
| 78 | M-1601 | Chainwheel | |
| 79 | M-1602 | Race - Roller | |
| 80 | M-1603 | Washer - Roller Race | |
| 81 | M-1604 | Plate - Spring | |
| 82 | M-1605 | Spring - Clutch (Available in Regular, Medium) | |
| 83 | M-1606 | Cup - Clutch Spring | |
| 84 | M-1607 | Nut - Clutch Spring | |
| 85 | M-1608 | Stud - Clutch Spring | |
| 86 | M-1609 | Collar - Spacing | |
| 87 | M-1610 | Nut, .375-26 | |
| 88 | M-1612 | Screw - Fillister Head, .250-20 x 1.875 | |
| 89 | M-1613 | Nut, .250-20 | |
| 90 | M-1614 | Nut, .250-26 | |
| 91 | M-1615 | Shell | |
| 92 | M-1616 | Case - Kickstarter | |
| 93 | M-1617 | Cover - Kickstarter Case | |
| 94 | M-1623 | Bolt - Kickstarter Lever | |
| 95 | M-1621 | Nut - Kickstarter Lever | |
| 96 | M-1625 | Rubber - Kickstarter Stop Peg (with Steel Band) | |
| 97 | M-1627 | Locating Piece | |
| 98 | M-1628 | Stud - Kickstarter Case, .250-20 x 1.156 | |
| 99 | M-1629 | Lever - Kickstarter | |
| 100 | M-1630 | Spindle - Kickstarter | |
| 101 | M-1631 | Quadrant | |
| 102 | M-1632 | Bushing - Kickstarter Spindle - Case | |
| 103 | M-1633 | Bushing - Kickstarter Spindle - Cover | |
| 104 | M-1634 | Peg - Kickstarter Stop | |
| 105 | M-1635 | Plug - Kickstarter | |
| 106 | M-1649 | Stud, .250-20 x 2.625 | |
| 107 | M-1815 | Lever - Control | |
| 108 | M-1923 | Keeper Main Shaft Nut | |
| 109 | M-1377 | Clutch Plate - Coropreme | |
| NOTE! SEE 4-Speed PARTS LIST FOR FOLDING KICKSTARTER ASSEMBLY | |||
