Primary Drive Parts

Page	Part
21	Front Fork Assembly
22	Dellorto Carburetor No. M-2504
24	Engine Assembly Complete - PAGE 1
24	Engine Assembly Complete - PAGE 2
26	Lighting System
27	"G" Magneto Assembly No. 15257
29-1	Three Speed Primary Drive Parts
29-2	Three Speed Mounting Bracket Parts
30-1	Three Speed Transmission Parts - PAGE 1
30-2	Three Speed Transmission Parts - PAGE 2
30-3	Three Speed Transmission Parts - PAGE 3
32	Four Speed Gearbox and Clutch
34-1	Primary Drive Parts
34-2	Transmission Mounting Bracket - 4 Speed
35-1	Front Wheel
35-2	Front Brake Assembly No. M-1753
36-1	Rear Wheel
36-2	Rear Brake Assembly
36-3	Chrome Carrier "Tubular"
37	M-2512 Front Wheel Assembly Complete
38	M-2513 - Rear Wheel Assembly Complete
39-1	M-2546 Seat Assembly Complete
39-2	Brake Pedal & Linkage
40-1	Rear Suspension Assembly
40-2	Upswept Exhaust
42	Pony Master Assembly - Right Side
44	Pony Master Assembly - Left Side
46	Bronco and Stallion - Right Side
48	Bronco and Stallion - Left Side
50	Thoroughbred - Right Side (Complete)
52	Thoroughbred - Left Side (Complete)

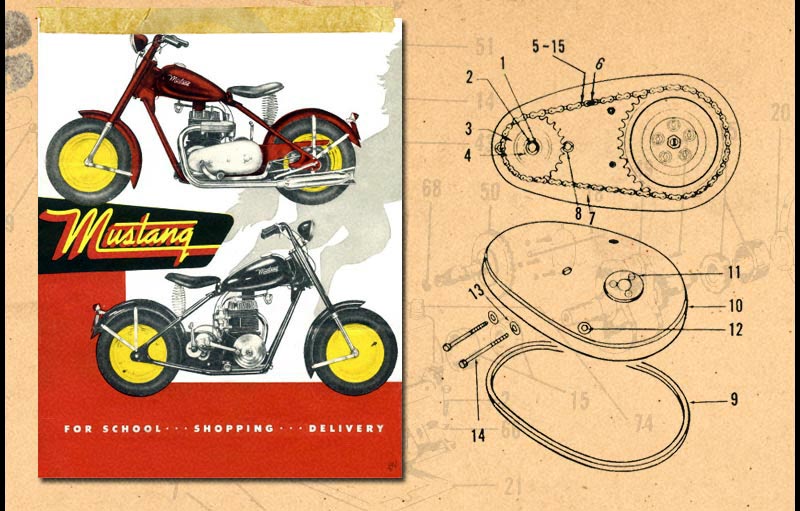

#	PART #	NOMENCLATURE
1	M-1708	Key - Square, .250 x .250 x .625
2	M-1498	Washer - Plain, .438 x 1.188 x .188
	M-2399	Washer - Lock, .438 x .750 x .062
	M-1178	Washer - Plain, .438 x 1.188 x .188
3	M-1224	Sprocket - Drive (22 Teeth)
4	M-1230	Screw - Set, .312-24 x .375
5	M-2446	Chain - Primary Drive (No. 40 x 32.5)
6	M-1195	Link - Connecting (No. 40)
7	M-1936	Housing Assembly - Primary Drive
8	M-2397	Washer - Counter Sunk Star Lock
	M-1940	Screw - Flathead .250-20 x .750
9	M-1934	Gasket - Primary Drive
10	M-1920	Cover - Primary Drive
11	M-1099	Plate - Inspection
	M-1232	Gasket - Inspection Plate
	M-1183	Washer - Lock
	M-1174	Screw - Round Head
12	M-1177	Washer - Fiber, .250 x .562 x .094
	M-1230	Screw - Hex Hd Cap, .250-20 x .500
13	12385	Washer - Plain, .312 x .688 x .062
14	M-1447	Screw - Hex Hd Cap, .312-24 x 3.500
15	M-2450	Chain - Primary Drive (No. 40 x 31.5") 5 hp
