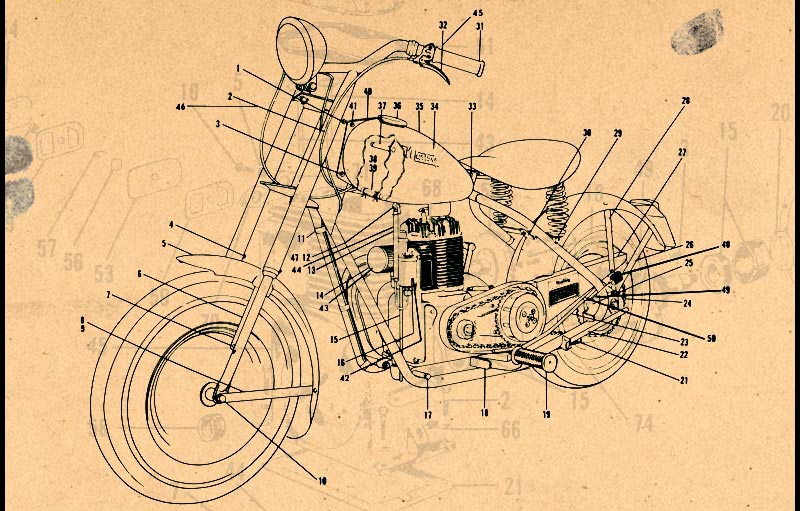

Pony Master Assembly - Left Side

# PART # NOMENCLATURE
1 1245 Washer - Plain, No. 10
  1468 Screw - Hex Hd. Cap, No. 10-32 x 2.00
  1183 Washer - Lock, No. 10
  1184 Nut - Hex, No. 10-32
2 2364 Cable Assy. - Clutch (Amal) used with 1159 Lever
3 1467 Screw - Hex Hd. Cap, .250-28 x 2.625
  1925 Washer - Lock, .250 x .506 x .025
  1168 Nut - Hex, .250-28
  1381 Spacer - .312 x 5.00 x 2.00
4 1705 Screw - Truss Hd., .250 x .500
  1925 Washer - Lock, .250 x .506 x .025
  1168 Nut - Hex, .250-28
  1234 Washer - Plain, .250 x .500 x .062
5 2431 Fender - Front
6 1097 U-Bracket - Front Fender
7 1241 Screw - Hex Hd. Cap, .250-28 x .750
  1242 Spacer - Front Fender, .281 x .438 x .375
8 2436 Bracket - Front Fender
9 1705 Screw - Truss Hd., .250 x .500 x .062
  1234 Washer - Plain, .250 x .500 x .062
  1925 Washer - Lock, .250 x .506 x .025
  1168 Nut - Hex, .250-28
10 2399 Washer - Lock, .438 x .750 x .062
  1178 Screw - Hex Hd. Cap, .438-20 x 1.00
11 1919 Clip
12 0W-480 Filter - Fuel
13 1222 Elbow - Pipe Thd (90* x .125 NPT)
  1219 Hose - Fuel, .250 x .500 x 6.500 used with Amal Carburetor
  1738 Clamp-Hose, .500 used with Amal Carburetor
  1906 Line-Fuel, .250 x .035 wall x 600
14 2452 Filter - Carburetor, Air, Amal
15 1731 Tube - Breather, .250 OD x 11.312
  1732 Clip - Breather
16 1155 Carburetor Assy. - (Amal No. 275AL/1A) 1959 Models and Earlier
  1228 Washer - Plain, .312 x .562 x .062
  1271 Hex Hd. Cap, .312-18 x .750
  12755 Gasket - Carburetor
17 1382 Screw - Hex Hd. Cap, .438-20 x 3.250
  2329 Washer - Lock, .438 x .858 x .062
  1340 Nut - Hex, .438-20
18 1367 Pedal Assembly - Brake
19 2444 Rest Assy. - Left Foot
  1211 Rest - Foot (Rubber)
21 1129 Spring - Parking Stand
  1197 Pin - Clevis, .312 x 1.312
  1702 Pin - Cotter, .094 x .500
22 2603 Stand Assembly - Parking
23 1642 Rod - Brake
  1186 Nut-Hex, .312-24 (Brake Rod Adj.)
24 1195 Link - Connecting, No. 40
  1740 Chain - Drive, No.40, 44.50 in. long
25 1813 Brake Assembly
26 2433 Brace - Rear Fender, Lower
27 1389 Guard Assembly - Chain
28 2434 Brace - Rear Fender, Upper Left
  1182 Screw - Round Hd. No. 10-32 x 1.250
  1472 Spacer - .205 x .375 x .625
  1245 Washer - Plain, No. 10
  1183 Washer - Lock, No. 10
  1184 Nut - Hex, No. 10-32
29 1471 Washer-Plain, .312 x .875 x .062
  1227 Screw-Hex Hd. Cap, .312-24 x 1.00
  1170 Washer-Lock, .312 x .594 x .062
  1186 Nut - Hex, .312-24
30 1234 Washer-Plain, .250 x .500 x .062
  1241 Screw - Hex Hd. Cap, .250-28 x .750
  1925 Washer - Lock, .250 x .506 x .025
  1223 Brace - Rear Fender, Center
31 1158 Grip - Dummy (Amal)
32 M-2496 Lever Assy. - Clutch 6 1/2 Inch
33 1228 Washer - Plain, .312 x .562 x .062
  1228 Screw - Hex Hd. Cap, .312-24 x 1.750
  1170 Washer - Lock, .312 x .594 x .062
  1186 Nut - Hex, .312-24
  1469 Pin - Cotter, .188 x 1.750
34 1209 Decal - Mustang
35 1428 Gas Tank Assy. - Left Half
  1429 Gas Tank Assy. - Right Half
36 1208 Cap - Gas Tank
37 1465 Hose, .375 x .688 x 2.00
38 1466 Clamp - Hose, .688
39 1481 Hose, .375 x .688 x 2.750
40 1134 Strip - Gas Tank, Outer
41 1234 Washer - Plain, ,250 x 5.00 x .062
  1438 Screw - Hex Hd. Cap, .250-28 x 2.250
42 2504 Carburetor (Dellorto)
43 2503 Filter - Air (Dellorto)
44 1219 Hose-Fuel 3/16-I.D.x 7/16 O.D. x 6 1/4" used with Dellorto Carb.
  2692 Clamp-Hose 7/16 I.D. used with Dellorto Carb.
45 2496 Lever Assy. - Clutch Hvy. Duty 6 1/4" Long
46 2494 Cable Clutch used with 2496 Lever
47 2664 Fuel Valve - Reserve, Off & On
48 1961 Stop Light Switch
49 1968 Spring Stop Light Switch
50 1969 Clip Spring Retaining
