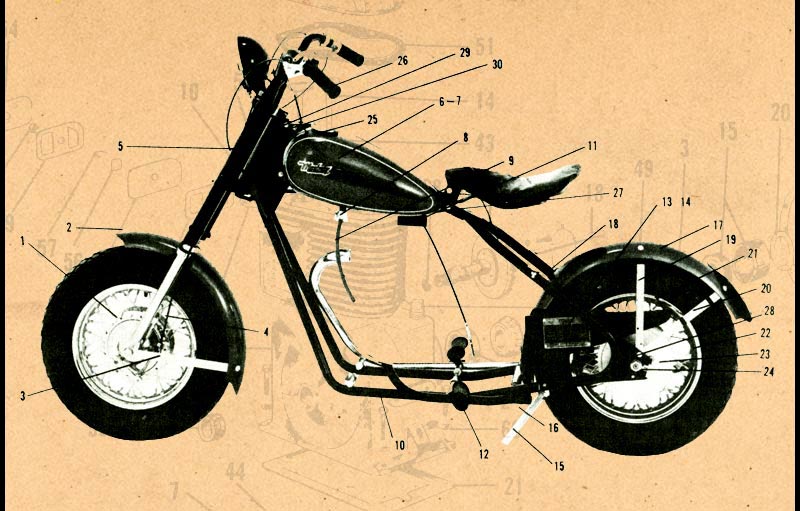

Bronco - Stallion (Left Side)

# PART # NOMENCLATURE
1 M-2512 Wheel Assembly - Front Complete (see page 37 for parts)
2 M-2431 Fender - Front
3 M-2608 Brace - Front Fender
4 M-2554 Cable Assembly - Front Brake
5 M-2601 Fork - Complete (see page 21 for parts)
6 M-1428 Fuel Tank - Left (Bronco)
7 M-1428-8 Fuel Tank - Left (Stallion)
8 M-2664 Fuel Valve - (3-way)
9 M-1219 Fuel Hose
  M-2692 Clamp - Hose 500
10 M-2660 Frame Assy. - Includes Rear Brake Pad Assy. M-2586
11 M-1366 Bracket - Cylinder Head
12 M-2144 Footrest Assembly - Left
  M-1211 Rubber - Footrest
13 M-1389 Chain Guard - Rear (Bronco)
14 M-2437 Chain Guard - Rear (Stallion)
15 M-2603 Parking Stand
16 M-1129 Spring - Parking Stand
17 M-2432 Fender - Rear
18 M-1223 Bracket - Rear Fender (Center)
19 M-2434 Brace - Rear Fender (Upper Left)
20 M-2433 Brace - Rear Fender (Lower)
21 M-2605 Wire Extension
22 M-2513 Wheel Assembly - Rear - Complete (see page 38 for parts)
23 M-2639 Sprocket - Rear
24 M-2539 Chain Adjuster
25 M-1208 Cap - Fuel Tank
26 M-1158 Grip - Dummy (Left)
27 M-1437 Screw - Hex Hd. .250-28 x 2.000
  M-1168 Nut - Hex .250-28
  M-1234 Washer - Plain - .250 x .500 x .062
  M-1167 Washer - Lock - .250 x .500 x .062
28 M-2349 Screw - .250-28 x 1.000
  M-1168 Nut - Hex Hd. .250-28
  M-1234 Washer - Plain .250 x .500 x .062
  M-1167 Washer - Lock .250 x .500 x .062
29 M-1168 Screw - No. 10-32 x 2.000
  M-1184 Nut -- Hex No. 10-32
  M-1245 Washer - Plain, No. 10
  M-1183 Washer - Lock, No. 10
30 M-1438 Screw - .250-28 x 2.250
  M-1168 Nut - Hex Hd. .250-28
  M-1234 Washer - Plain, .250 x .500 x .062
  M-1167 Washer - Lock, .250 x .500 x .062
