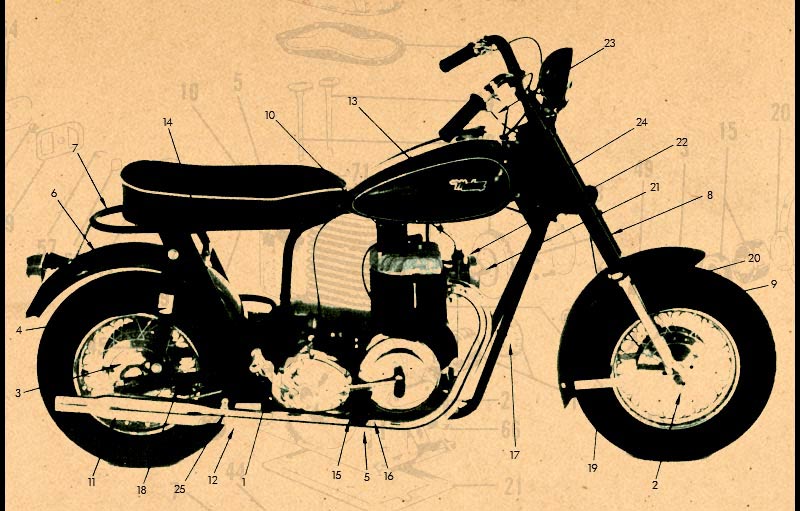

Thoroughbred - Right Side (Complete Machine)

# PART # NOMENCLATURE
1 M-2511 Kickstarter Assembly, Folding (Complete)
2 M-2512 Wheel Assembly - Front, includes Brake & Axle (see Page 37 for Parts)
3 M-2513 Wheel Assembly - Rear, includes Brake, Axle & Sprocket (see Page 38 for Parts)
4 M-2684 Shock Absorber - Hydraulic, Heavy Duty
5 M-2531 Footrest Assembly - Right & Left
  M-1211 Rest - Foot Rubber
6 M-2567 Fender - Rear
7 M-2573 Frame Assembly Complete - Includes Brake Pedal
8 M-2601 Fork Assembly - Front, Complete
9 M-2590 Fork Tube - Internal, Right
10 M-2602 Bracket - Cylinder Head, Screw, Nut, Washer - Plain, Washer - Lock
11 M-1647 Shell - Muffler
12 M-1378 Pipe Assembly - Exhaust
13 M-1429-8 Tank Assembly - Right Half
14 M-1437 Screw - Hex hd. Cap, .250-28 x 2.00
  M-1234 Washer - Plain, .250 x .500 x .062
  M-1168 Nut - Hex hd. .250-28
  M-1925 Washer - Star Lock .250
15 M-2611 Screw - Hex hd., .438-20 x 4.000
  M-1340 Nut - Hex hd., .438-20
  M-2399 Washer - Internal Lock .438
16 M-2133 Screw - Hex hd., .375-24 x 2.000
  M-1162 Nut - Hex hd., .375-24
  M-1161 Washer - Lock .375
17 N/A Use Tape As Required
18 M-2605 Harness Assembly - Extension
19 M-2608 Bracket - Front Fender
20 M-1097 U-Bracket - Front Fender
21 M-2503 Filter - Air (Dellorto)
22 M-2504 Carburetor Dellorto (UBF22B)
23 M-1156 Cable - Throttle
24 M-1705 Screw (Tank) Truss hd. 250-28 x .500
  M-1168 Nut - Hex hd. 250-28
  M-1234 Washer - Plain . 250 x .500 x .062
  M-1925 Washer - Star Lock .250
25 12620 Spacer Muffler Clamp
  M-1467 Screw Hex hd. .250-28 x 2.625
  M-1168 Nut - Hex hd. .250-28
  M-1234 Washer - Plain .250 x .500 x .062
  M-1925 Star - Lock .250
