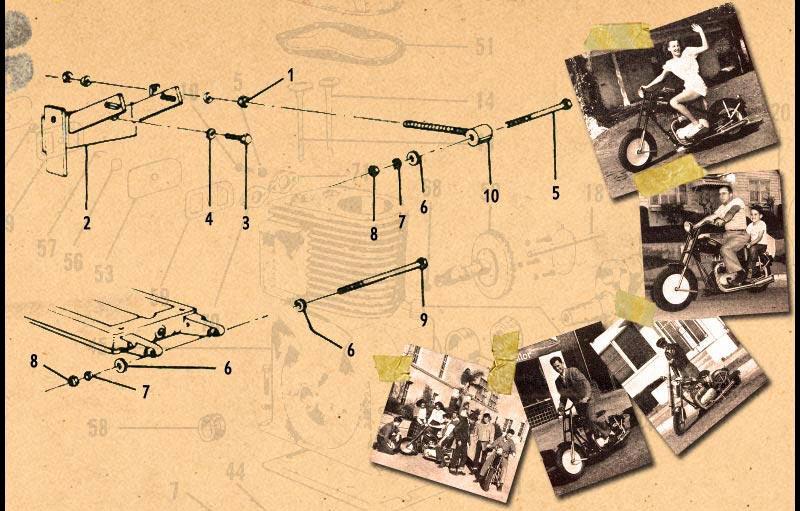

Transmission Mounting Bracket - 4 Speed

Page	Part
21	Front Fork Assembly
22	Dellorto Carburetor No. M-2504
24	Engine Assembly Complete - PAGE 1
24	Engine Assembly Complete - PAGE 2
26	Lighting System
27	"G" Magneto Assembly No. 15257
29-1	Three Speed Primary Drive Parts
29-2	Three Speed Mounting Bracket Parts
30-1	Three Speed Transmission Parts - PAGE 1
30-2	Three Speed Transmission Parts - PAGE 2
30-3	Three Speed Transmission Parts - PAGE 3
32	Four Speed Gearbox and Clutch
34-1	Primary Drive Parts
34-2	Transmission Mounting Bracket - 4 Speed
35-1	Front Wheel
35-2	Front Brake Assembly No. M-1753
36-1	Rear Wheel
36-2	Rear Brake Assembly
36-3	Chrome Carrier "Tubular"
37	M-2512 Front Wheel Assembly Complete
38	M-2513 - Rear Wheel Assembly Complete
39-1	M-2546 Seat Assembly Complete
39-2	Brake Pedal & Linkage
40-1	Rear Suspension Assembly
40-2	Upswept Exhaust
42	Pony Master Assembly - Right Side
44	Pony Master Assembly - Left Side
46	Bronco and Stallion - Right Side
48	Bronco and Stallion - Left Side
50	Thoroughbred - Right Side (Complete)
52	Thoroughbred - Left Side (Complete)

#	PART #	NOMENCLATURE
1	M-1186	Nut - Hex, .312-24
2	M-1927	Bracket - Transmission Mounting
3	M-1271	Screw - Hex Hd. Cap, .312-18 x .750
4	M-2358	Washer - Starlock .312 x .601 x .031
5	M-2390	Screw - Hex Hd. Cap, .438-20 x 5.000
6	M-1965	Washer - Plain, .438 x .906 x .062
7	M-2399	Washer - Lock .438 x .858 x .062
8	M-1340	Nut - Hex, .438-20
9	M-2391	Screw - Hex Hd. Cap, .438-20 x 5.500
10	M-1937	Adjuster - Chain
